Add identity source

To be able to authenticate to vCenter with Active Directory, you have to add an identity source. To add an identity source, navigate to Administration | Single Sign-On | Configuration. Click on the add button.

Then select Active Directory (Integrated Windows Authentication).

In the next screen, the wizard tells you that you cannot add this identity source because the vCenter Single Sign-On server is not joined to a domain. So, click on Go to Active Directory Management to join the vCenter SSO server to the domain.

Next, click on join.

Then specify a domain, an OU and credentials to join the vCenter to the domain.

Next restart the vCenter server. When it is online again, you should be joined to the Active Directory Domain.

Next go back to to Administration | Single Sign-On | Configuration. Click on the add button. Then select Active Directory (Integrated Windows Authentication). Now the wizard sets automatically the domain name. Just click on next.

After you have reviewed the settings, you can click on finish to add the identity source.

Once you have added the identity source, you should have its information in the table as below.

Use Active Directory users and groups in vCenter

Now that vCenter can use Active Directory accounts to authenticate, you can browser users and groups. Navigate to Users and Groups tab. In domain menu, select your domain. You should get all the user of the domain.

In the Active Directory console, I have created a group called GG-VMwareAdmins. The account Romain Serre is a member of this group.

Next go back to vCenter and select groups tab. Select the Administrators group and click on add member.

Then select your domain and specify the name of the group in search field. Once you have found your group, just click on Add and OK.

Now the GG-VMwareAdmins Active Directory group is member of Administrators vCenter group.

From the authentication page, specify an account member of the Active Directory group.

If the configuration is good, you should be logged into vCenter as below.

Activate Windows Session Authentication

VMware provides an authentication plugin to use the Windows session login to authenticate to vCenter. The below screenshots come from Firefox. Open the browser and navigate to the vCenter authentication page. Then in the footer of the page, click on Download Enhanced Authentication plugin.

Once you run the installer, you have a warning saying that all other plug-in instances will be stopped. Just click on OK.

Next the wizard says to you that two plug-ins will be installed: the VMware Enhanced Authentication Plug-in and VMware Plug-in Service installers. Click on OK.

Foreach plug-in, follow the process to install it.

When both plug-ins are installed, close and open the web browser. Next, open again the vCenter authentication page. You should have the below popup. Click on Remember my choice for vmware-plugin links and click on Open link.

Next, you are able to check Use Windows session authentication. When you check the box, the below pop-up appears. Click on Allow.

Now you can use the Windows session credentials to authenticate to vCenter.

Conclusion

The authentication from Active Directory brings a valuable way to manage and segregate rights. Almost all companies have an Active Directory to manage authentication and authorization centrally. Thanks to Active Directory, vCenter authentication and authorization can also be managed from this service. This enables to increase the security level because vCenter is not managed alone anymore and it is integrated into the overall company security policies (such as password length, expiration and so on).

The post Authenticate to vCenter from Active Directory credentials appeared first on Tech-Coffee.

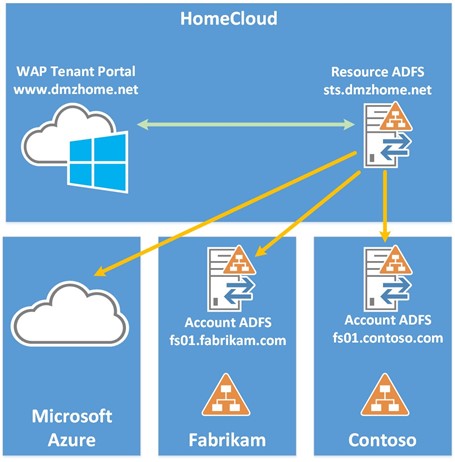

Fabrikam and Contoso forests represent two customers of my Cloud service. When a tenant from Fabrikam want to log on the WAP Tenant portal (www.dmzhome.net), here’s what happens:

1. The user from Fabrikam connects to www.dmzhome.net;
2. He is redirected to sts.dmzhome.net. This AD FS asks where come from the tenant (Microsoft Azure, Fabrikam or Contoso);
3. When the tenant has selected where he come from, he is redirected to the Fabrikam account AD FS (fs01.fabrikam.com);
4. The tenant specifies his credential and fs01.fabrikam.com send claims to sts.dmzhome.net;
5. sts.dmzhome.net verifies the claims and redirect the token to www.dmzhome.net;
6. If the tenant doesn’t exist in the Windows Azure Pack database, an account is created.

In this topic, I will configure each AD FS to authenticate tenants with their own Active Directory credential on Windows Azure Pack tenant portal.

Requirements

To follow this topic, you need:

• Three forests to simulate Fabrikam, Constoso and HomeCloud Active Directory;
• One server that hosts Active Directory Federation Service in each forest (fresh installation);
• A working Windows Azure Pack installation (cf. this topic).

Add a relying party trust to Account AD FS

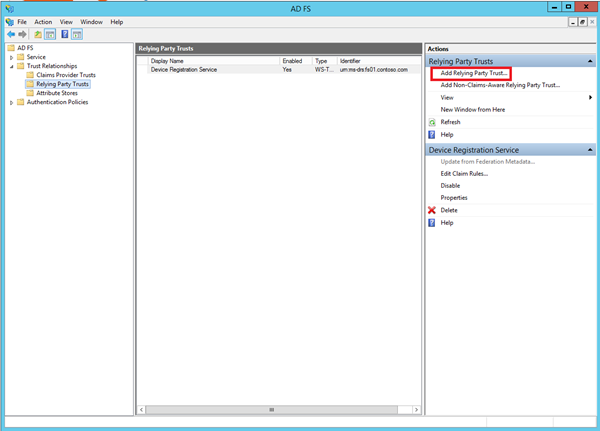

First we will configure the account AD FS that are in each customer forest (Fabrikam and Contoso). So open the AD FS console and navigate to Relying Party Trusts. Select Add Relying Party Trust…:

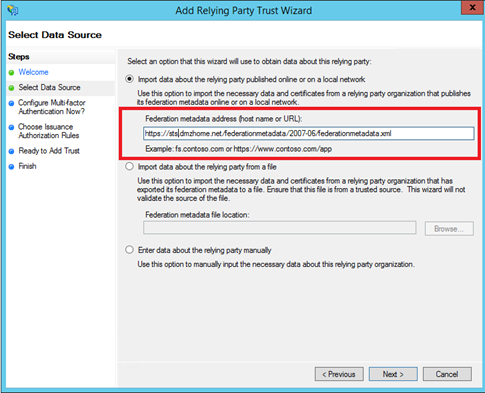

Next specify the Federation Metadata address of the resource AD FS. Mine is called sts.dmzhome.net so I specify https://sts.dmzhome.net/federationmetadata/2007-06/federationmetadata.xml:

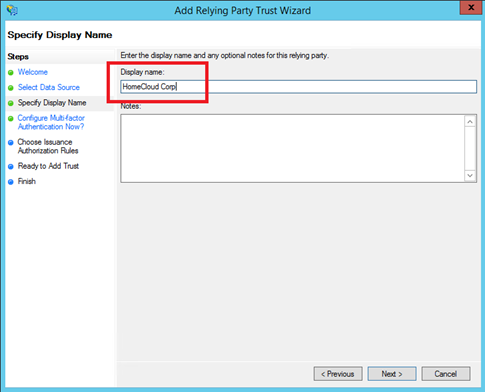

Next specify a Display Name:

In this topic I don’t configure the Multi-Factor authentication. So I leave the defaut settings and I click on next.

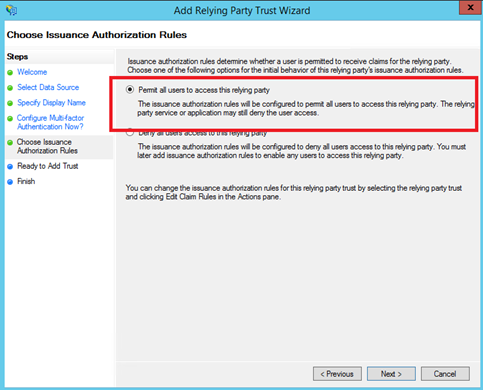

Leave the default setting on the below screen to permit all users to access this relying party.

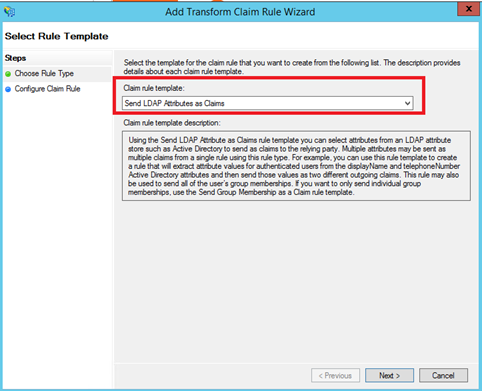

When you are on Finish screen, tick the edit claims rules checkbox. Click on Add Rule in Issuance Transform Rules tab. Select Send LDAP Attributes as Claims:

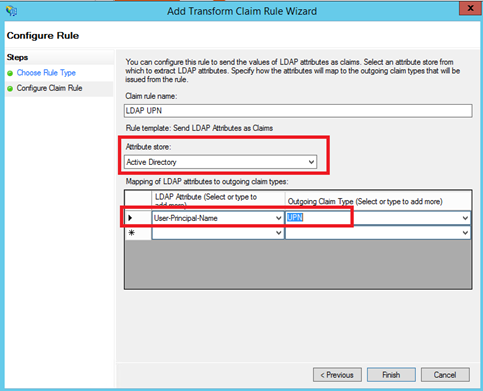

Next specify a Claim rule name and select Active Directory as Attribute store. Map User-Principal-Name LDAP attribute to UPN claim type:

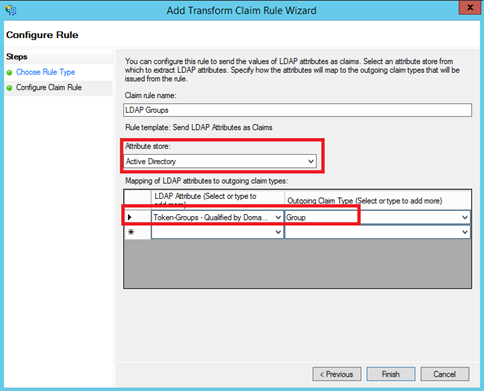

Next add again a rule based on Send LDAP Attributes as Claims template. Specify a claim rule name and select Active Directory as Attribute store. Map Token-Groups – Qualified by Domain Name LDAP attribute to Group claim type:

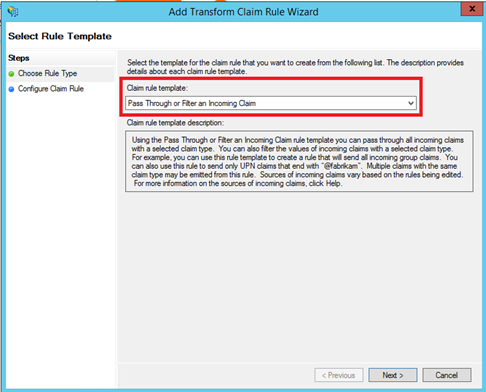

Next add again a rule and select Pass Through or Filter an Incoming Claim template:

Specify a claim rule name and select UPN in Incoming claim type menu:

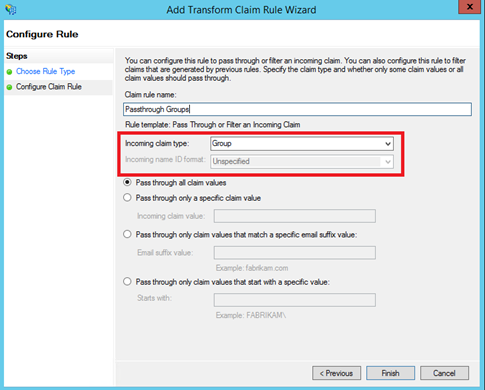

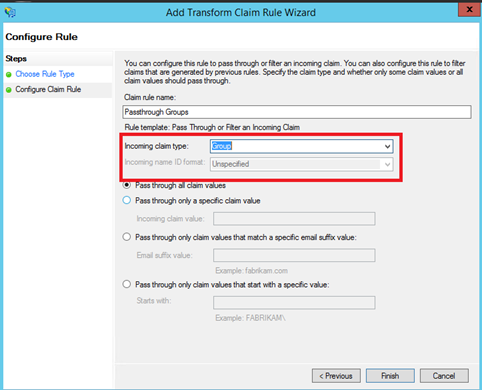

Then add again a rule and select Pass Through or Filter an Incoming Claim template. Specify a claim rule name and select Group in Incoming claim type menu:

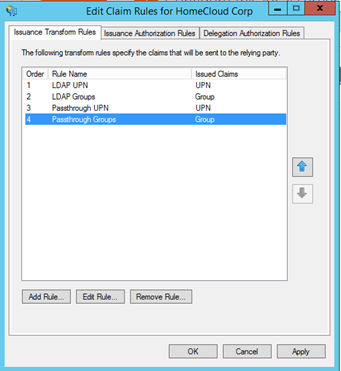

At the end you should have four transform rules as below:

Repeat the same procedure for the others Account AD FS.

Add claims Provider Trusts to Resource AD FS

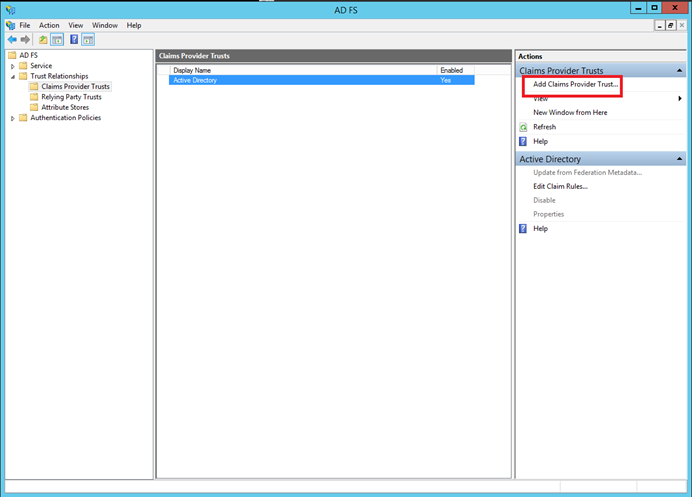

Now that Account AD FS are set, we have to configure the resource AD FS in our perimeter to add claims provider trusts. In other word, this configuration enables to create federation trust From Resource AD FS to Account AD FS. In the below example, I create a federation trust with Fabrikam. First open the AD FS console and navigate to Claims Provider Trusts. Click on Add Claims Provider Trust…:

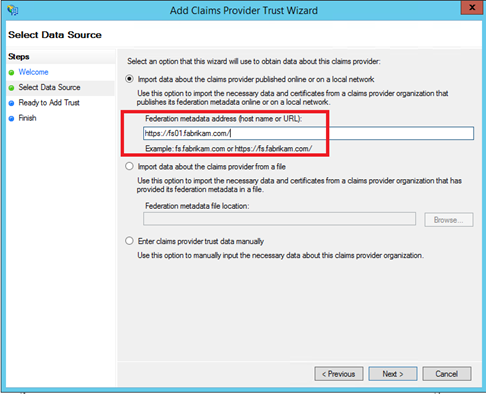

Next specify the account AD FS url in Federation metadata address field. In my example I specify https://fs01.fabrikam.com/.

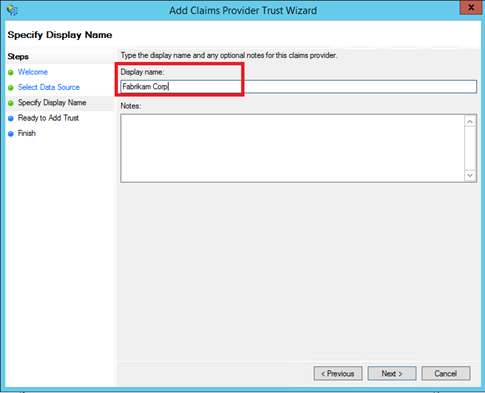

Then specify a display name.

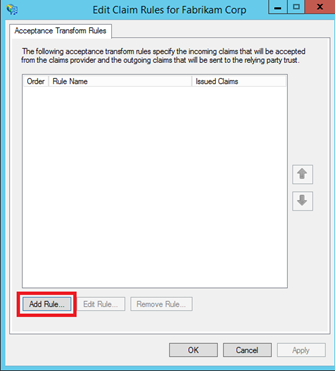

Once the Claims Provider Trust is created, edit the claim rules of this trust. Click on Add rule.

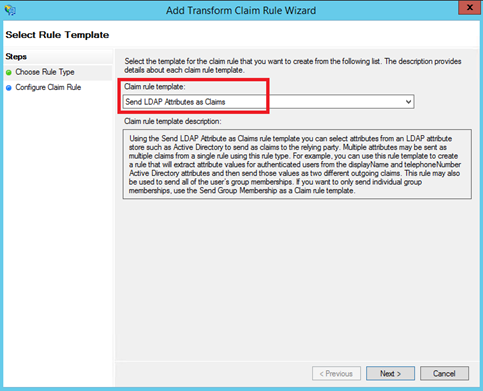

Select Send LDAP Attributes as Claims template.

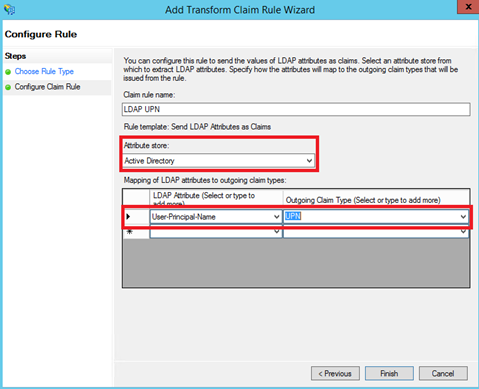

Next specify a Claim rule name and select Active Directory as Attribute store. Map User-Principal-Name LDAP attribute to UPN claim type:

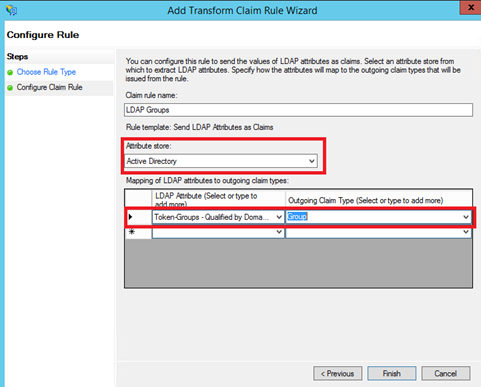

Next add again a rule based on Send LDAP Attributes as Claims template. Specify a claim rule name and select Active Directory as Attribute store. Map Token-Groups – Qualified by Domain Name LDAP attribute to Group claim type:

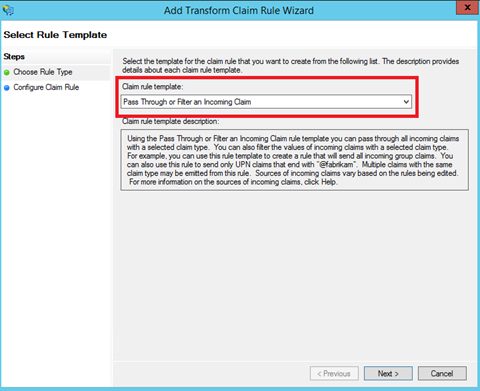

Next add again a rule and select Pass Through or Filter an Incoming Claim template:

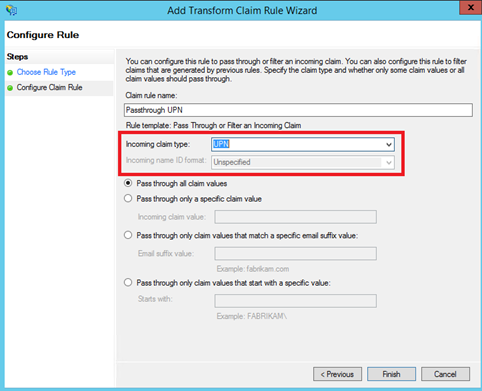

Specify a claim rule name and select UPN in Incoming claim type menu:

Then add again a rule and select Pass Through or Filter an Incoming Claim template. Specify a claim rule name and select Group in Incoming claim type menu:

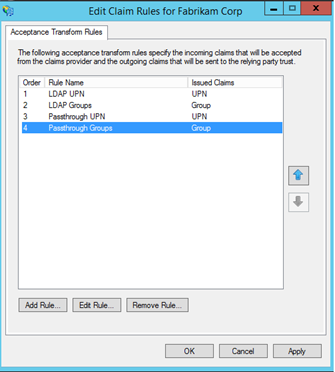

At the end you should have four transform rules as below:

Repeat the same procedure to add a Claims Provider Trust to Contoso.

Add a relying party trust to Resource AD FS

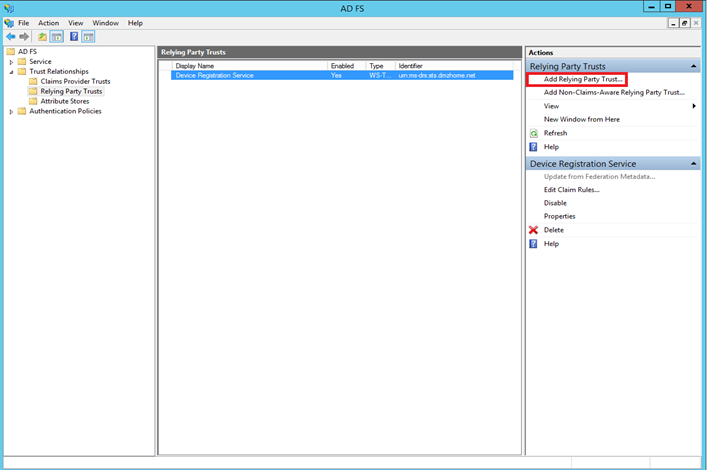

Next we have to add a relying party trust to the Windows Azure Pack tenant portal. So open the AD FS console and navigate to Relying Party Trusts. Then click on Add Relying Party Trust…:

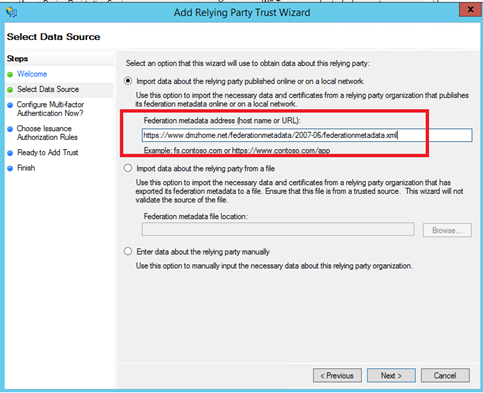

Specify the federation metadata address of the Windows Azure Pack tenant portal. In my example I have specified https://www.dmzhome.net/federationmetadata/2007-06/federationmetadata.xml.

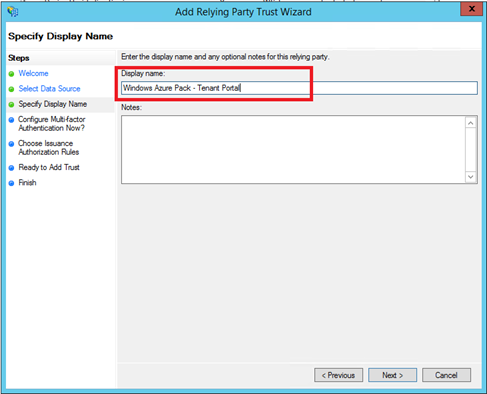

Next specify a display name.

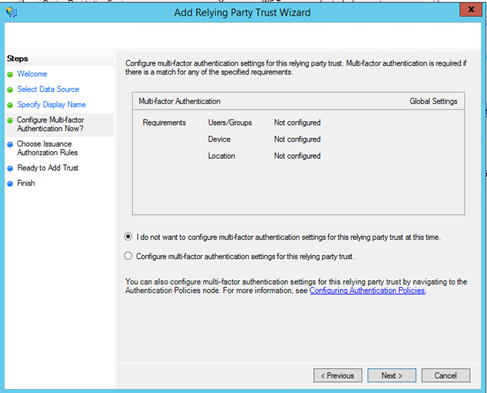

Next I leave the default settings because I don’t want to configure the Multi-Factor Authentication.

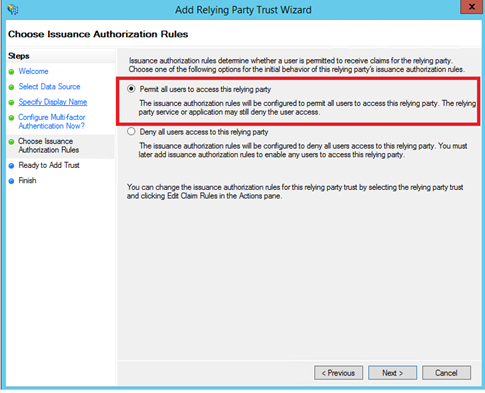

Then leave the default setting to permit all users to access this relying party.

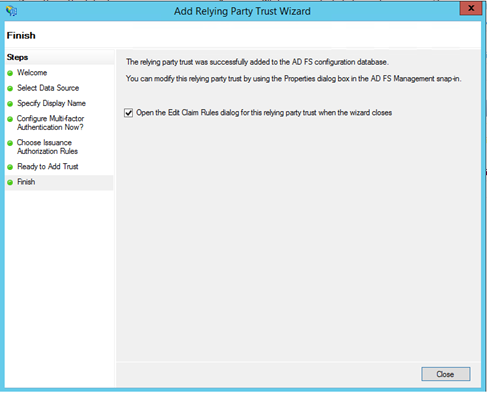

On the finish screen, tick the checkbox to edit claim rules.

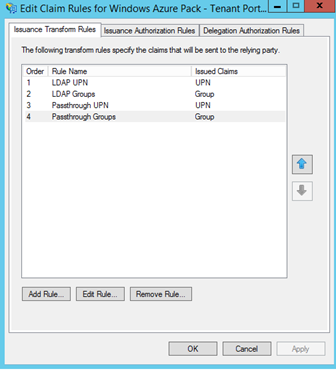

Add issuance transform rules as previous parts. You should have four rules as below.

To finish, run this command on the resource AD FS:

Set-AdfsRelyingPartyTrust -TargetIdentifier 'https://azureservices/TenantSite' -EnableJWT $true

The AD FS configuration is now finished J.

Change WAP Tenant authentication site

Now connect to a Windows Azure Pack server and run the below script. It enables to reconfigure Windows Azure Pack to use the resource AD FS as authentication site instead of the default site.

$fqdn = 'sts.dmzhome.net'
$dbServer = 'SQLAAG02.home.net'
$dbPassword = 'password'
$portalConfigStoreConnectionString = [string]::Format('Data Source={0};Initial Catalog=Microsoft.MgmtSvc.PortalConfigStore;User ID=sa;Password={1}', $dbServer, $dbPassword)
Set-MgmtSvcRelyingPartySettings -Target Tenant `
                                -MetadataEndpoint https://$fqdn/FederationMetadata/2007-06/FederationMetadata.xml `
                                -ConnectionString $portalConfigStoreConnectionString

Authenticate tenants with AD FS

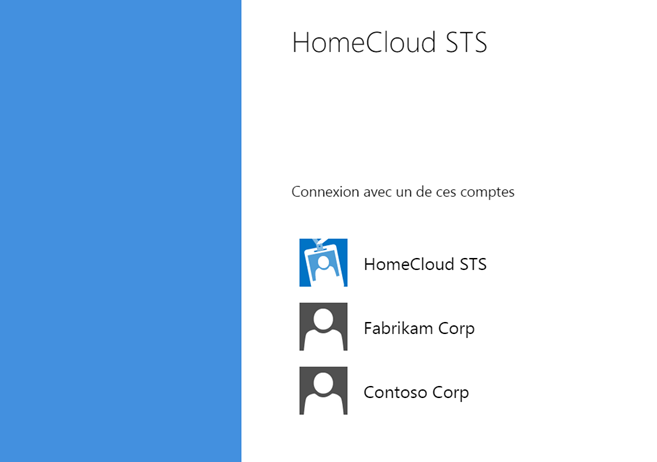

Now we can open a browser and navigate to the tenant portal (https://www.dmzhome.net on my side). On the below screen you can see the authentication portal. The both AD FS appears and the tenants have to select the company (Fabrikam or Contoso).

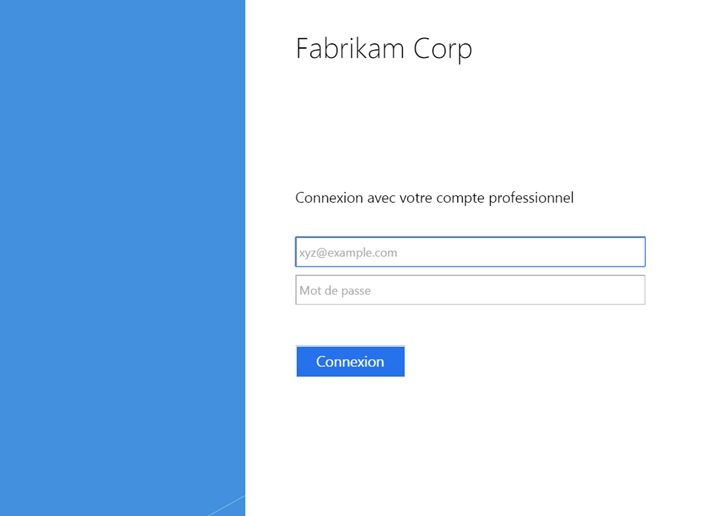

When the company is selected, the resource AD FS redirects the tenants to the related account AD FS.

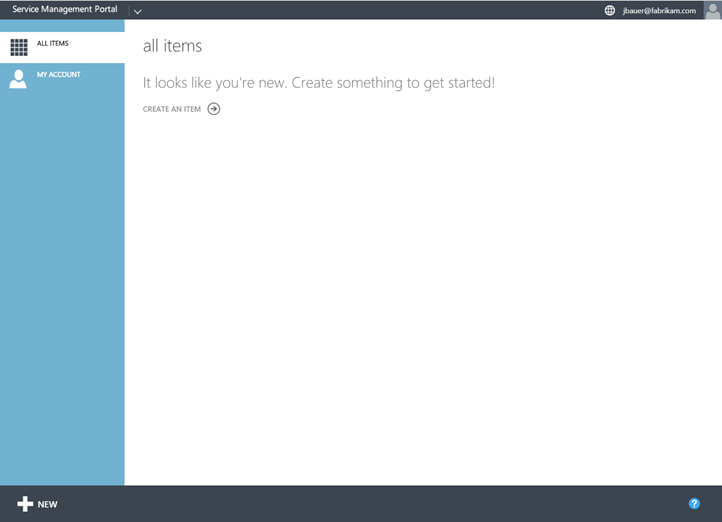

Once the tenant has specified his credential, he is redirected to the resource AD FS and then this last redirects the tenant to the WAP tenant portal. If the account doesn’t exist, he is created.

Customize AD FS authentication page

Thanks to AD FS, it is possible to customize the authentication page. You can use below PowerShell commands:

Set-AdfsGlobalWebContent -CompanyName "HomeCloud"
Set-AdfsGlobalWebContent -ErrorPageSupportEmail "Report this error"
Set-AdfsGlobalWebContent -ErrorPageDescriptionText "Access Denied"
Set-AdfsGlobalWebContent -Homelink "//www.tech-coffee.net"
Set-AdfsGlobalWebContent -HomelinkText "Website"
Set-AdfsGlobalWebContent -PrivacyLink "//www.tech-coffee.net"
Set-AdfsGlobalWebContent -PrivacyLinkText "Privacy Statement"
Set-AdfsWebTheme -TargetName default -Logo @{path="C:\Temp\homecloud.png"}
Set-AdfsWebTheme -TargetName default -Illustration @{path="C:\Temp\Cloud-Computing.jpg"}
Set-AdfsGlobalWebContent -SignInPageDescriptionText "<p>Welcome to HomeCloud service. Enjoy <span style="font-family: Wingdings;">J</span>.</p>"
Set-AdfsGlobalWebContent -ErrorPageDeviceAuthenticationErrorMessage "We were unable to authenticate you. EAre you sure that you have authorization to access the service ?"
Set-AdfsGlobalWebContent -ErrorPageGenericErrorMessage "An unexpected error has occurred, please let the administrators know"

Set-AdfsGlobalWebContent -ErrorPageAuthorizationErrorMessage “Sorry, we were unable to authorize your access, please try again. If this error persists, please contact the administrators.”

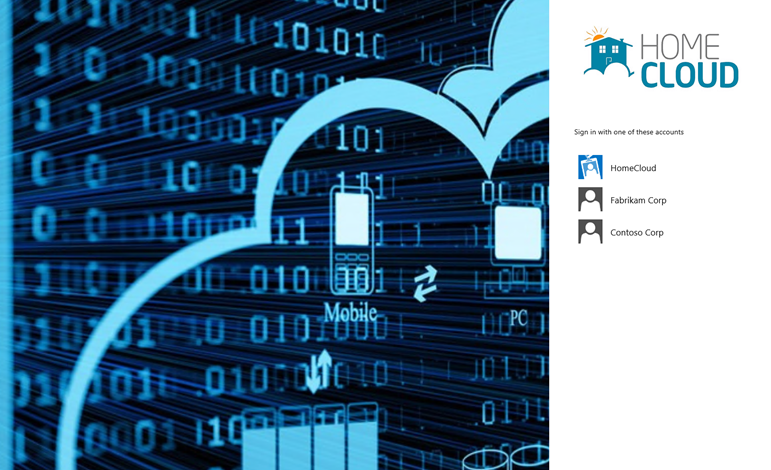

And the result J:

So as we have seen on this topic, it is possible to manage which customers access the service thanks to the federation trusts. By removing the federation trust, the customers can no longer access to the Cloud service. Enjoy with yours AD FS J.
